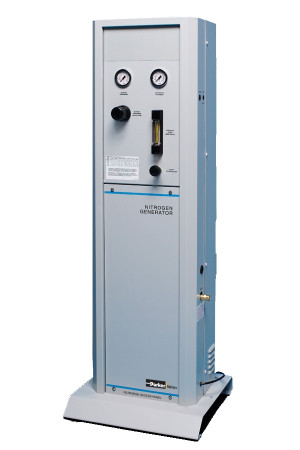

The Parker Balston Nitrogen Generator is a completely engineered system which will transform a compressed air supply into 95% to 99.5% purity compressed nitrogen. The system is based on state-of-the-art membrane technology. Compressed house air flows through the hollow fiber membrane module and is separated into a concentrated nitrogen output stream and an oxygen enriched permeate stream. The compressed nitrogen is filtered and delivered to the process or equipment downstream. The permeate is vented to the atmosphere. Typical applications include: LC-MS, nebulizer gas, chemical and solvent evaporation, instrument purge and supply, evaporative light scattering detector use (ELSD), and sparging.
- Recommended and used by all major LC-MS manufacturers
- Generates 25 liters per minute @99.5% purity under 125psi air pressure, and up to 114 liters per minute @95% under 125psi air
- Eliminates the need for costly, dangerous, inconvenient nitrogen cylinders in the laboratory
- Requires no electricity
- Compact design frees up valuable laboratory floor space
- Phthalate-free, no organic vapors
- Unlike PSA technology, membrane will not suppress corona needle discharge
System includes Combination Pre-filter System with Automatic Drains, High Performance Membrane Module, System Pressure and Gas Purity Controls, Final Membrane Filter, and (1) Year Standard System Warranty.
| Nitrogen Purity | 95% - 99.5% |
| Output Flow Capacity @ 95% Purity | 131 SLPM |
| Output Flow Capacity @ 99.5% Purity | 29 SLPM |
| Input & Output Pressure | 60-140 psig |
| Electrical Requirements | None |
Drop shipment required - additional shipping charges will be assessed at time of invoice
| Manuals | |
|---|---|
ManualInstallation, Operation, and Maintenance Manual |
Download |
| Brochures | |
Gas GeneratorsParker Lab Gas Generators |
Download |
| Blogs | |
Do Your Really Need Helium as Your Carrier Gas?Unpredictable helium supply can be problematic. With ongoing shortages, it may be time to find an alternatve solution. |
|
- Unit of Measure:
- EA
- Catalog Page Number:
- 402
- Type:
- Nitrogen Generator
- Max Flow Rate:
- 35
- Includes Compressor:
- No
