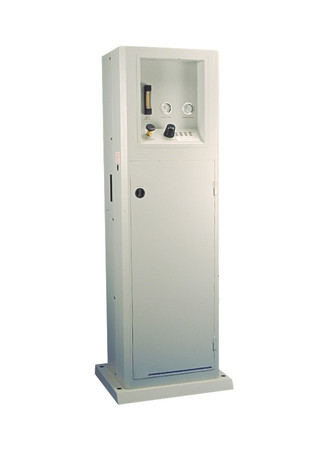

N2-135 - Parker N2 Generator, 54-467LPM, 95-99.5%

Parker
SKU:
N2-135
$77,144.00
Current Stock:
Adding to cart… The item has been added

The Parker Balston Nitrogen Generator is a completely engineered system which will transform a compressed air supply into 95% to 99.5% purity compressed nitrogen. The system is based on state-of-the-art membrane technology. Compressed house air flows through the hollow fiber membrane module and is separated into a concentrated nitrogen output stream and an oxygen enriched permeate stream. The compressed nitrogen is filtered and delivered to the process or equipment downstream. The permeate is vented to the atmosphere. Typical applications include: LC-MS, nebulizer gas, chemical and solvent evaporation, instrument purge and supply, evaporative light scattering detector use (ELSD), and sparging.

  • Recommended and used by all major LC-MS manufacturers
  • Generates 110 liters per minute @99.5% purity under 125psi air pressure, and up to 374 liters per minute @95% under 125psi air
  • Eliminates the need for costly, dangerous, inconvenient nitrogen cylinders in the laboratory
  • Requires no electricity
  • Compact design frees up valuable laboratory floor space
  • Phthalate-free, no organic vapors
  • Unlike PSA technology, membrane will not suppress corona needle discharge



Drop shipment required - additional shipping charges will be assessed at time of invoice



Technical References
Brochures

Gas Generators

Parker Lab Gas Generators

Download
Blogs

Do Your Really Need Helium as Your Carrier Gas?

Unpredictable helium supply can be problematic. With ongoing shortages, it may be time to find an alternatve solution.

Unit of Measure:
EA
Catalog Page Number:
402
Type:
Nitrogen Generator
Max Flow Rate:
135
Includes Compressor:
No
