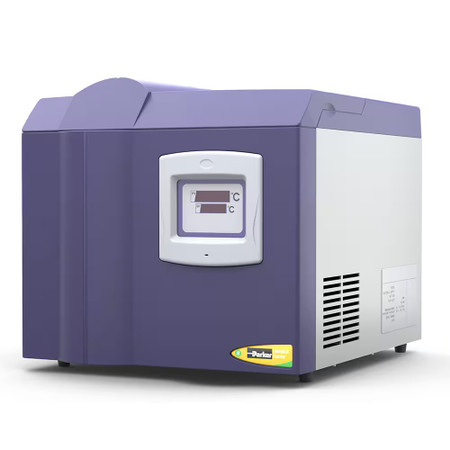

Ultra high purity, organic free, air for GC combustion detectors that will Increase resolution and detection limits of analysis. Flow rates range from 1 l/min to 30 l/min.
Technical Specifications
| Port Connection: | Inlet / Outlet: ¼" |
| Input Voltage: | 207 - 253 V, 50/60Hz |
| Flow Rate: | 7.5 l/min |
| Brand: | Parker |
| Division: | Gas Separation and Filtration Division EMEA |
| Industry: | Healthcare & Life Sciences, Industrial & Chemical Processing, Oil & Gas |
| Application: | Analytical Laboratory, GC Combustion Detector |
| Technology: | Filtration |
| Product Type: | Zero Air Gas Generator |
| Flow Rate: | 7.5 L/min |
| Gas Type Generated: | Zero Air (Hydrocarbon Free) |
| Gas Purity: | < 0.1 ppm (Organic Impurity) |
| Inlet Port Size: | 1/4 inch |
| Outlet Port Size: | 1/4 inch |
| Port Type: | Compression |
| Electrical Requirements: | Yes |
| Input Voltage: | 207 to 253 VAC 50/60 Hz |
| Ambient Temperature: | 5 to 40 °C, 41 to 104 °F |
| Inlet Pressure Rating: | 4 to 10 barg, 58 to 145 psig |
| Weight: | 14.2 kg, 31.3 lb |
| Height: | 455 mm, 17.9 inch |
| Width: | 340 mm, 13.4 inch |
| Depth: | 425 mm, 16.7 inch |
| Inlet Air Quality Specifications: | ISO8573-1:2001 Class 3.2.1 |
| Preventive Maintenance Kit: | 12 Month Inlet Filter Kit: 005AO (up to S/N 22Z0138), 12 Month Outlet Filter Kit: 005AA (up to S/N 22Z0138), 12 Month Inlet Filter Kit: P005AO (From S/N 22Z0139), 12 Month Outlet Filter Kit: P005AA (From S/N 22Z0139), Fan Kit: 606272525 change every 24 months |
| Outlet Pressure Rating: | 4 to 10 bar, 58-145 psig |
| Compressor Included: | No |
| Specifications Met: | n/a |
