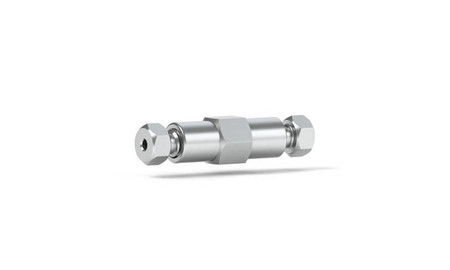

Our VHP+ Stainless Steel Union Assembly is precision machined from 316 stainless steel. Our mechanically strong and reliable union assembly offers true zero dead volume (ZDV) allowing tubing to be joined without interrupting the fluidic path. It is designed for 1/16OD tubing , thru-hole of .010 and has a 10-32 Coned thread port configuration. It comes with (2)VHP-200 .
| Manuals | |
|---|---|
Fittings GuideA practical guide to connections and fittings in your laboratory | Download |
- Fits tubing:
- 1/16" OD
- Ports:
- 10-32 Coned
- Material:
- Stainless Steel
- Type:
- Union
- Unit of Measure:
- EA
- Includes:
- (2) VHP-200
- Catalog Page Number:
- 238
- Threads:
- 10-32 Coned
- For Tubing OD (in):
- 1/16
- Thread Port Configuration Coned:
- 10-32
- Pressure Rating Max (bar):
- 2070
- Pressure Rating Max (psi):
- 30000
- Thru Hole (in):
- 0.01
- Thru Hole (mm):
- 0.25
