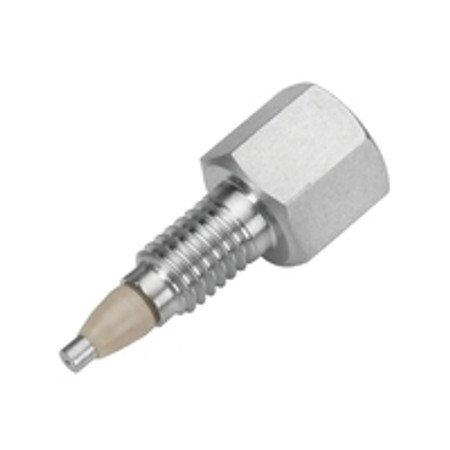

- Cost-effective protection for UHPLC systems.
- Reliable way to filter out particulates and extend column lifetime.
- Minimize extra column volume and maximize UHPLC sample throughput vs. guard cartridges.
- Universal fit—connects easily to any brand column.
- Leaktight to 15,000 psi (1,034 bar).
- 0.5 μm or 0.2 μm stainless steel frit in a stainless steel body with PEEK ferrule.
Specifications:
Inlet/Outlet: Female/Male 10-32
Port Geometry: Parker (1/16 CPI)
Material: stainless steel, PEEK ferrule
Filter: 0.5 μm or 0.2 μm stainless steel
Pressure Rating: 15,000 psig (1,034 bar)
Wrench Flat: 5/16"
