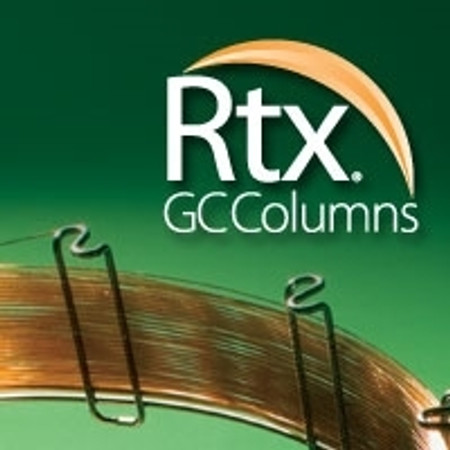

Rtx-1701 Columns (fused silica) midpolarity Crossbond phase
- General-purpose columns for alcohols, oxygenates, PCB congeners (e.g., Aroclor mixes), pesticides, and fragrance compounds.
- Equivalent to USP G46 phase.
Similar Phase(s): DB-1701P, DB-1701, CP-Sil 19 CB, VF-1701ms, VF-1701 Pesticides, ZB-1701, ZB-1701P
Temp. Limits: -20 to 270/280 °C
Length: 30 m
Internal Diameter: 0.32 mm
df (µm): 0.50 μm
Rtx-1701 is one of the more popular stationary phases used in capillary GC. The mix of cyano and phenyl functional groups increases the polarity and offers a different elution order relative to less polar Rtx-1 or Rtx-5 columns. An Rtx-1701 column is ideal for confirmation analysis in combination with an Rtx-35 or Rtx-5 column. The polymer is fully characterized to ensure long-term reproducibility, column-to-column consistency, and low bleed, even with sensitive detectors such as ECDs and MSDs.
- Column Family:
- Rtx-1701 Columns
- ID:
- 0.18 mm
- Film Thickness:
- 0.50 µm
- Length:
- 30 m
- Type:
- 7" CAGE
- Temp Limit (Celcius):
- -20 to 270/280 °C
- Unit of Measure:
- EA
- QTY:
- ea
