P-772 - MicroTight union assembly

P-772 - MicroTight Union Assembly 5-16/24 - 360um PEE

Idex Health and Science
SKU:
P-772
$49.23
Includes 2 F-152 & 2 P-416
Current Stock:
Adding to cart… The item has been added
Description

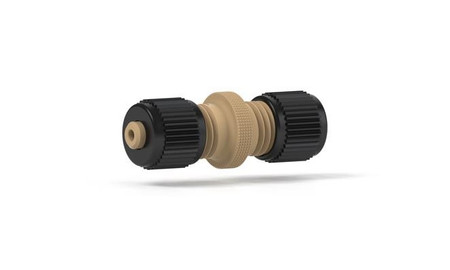

Our MicroTight Union Assembly is used specifically to connect capillary tubing together. It features a 0.015 thru-hole which adds only a small amount of additional flow-path volume to help ensure proper chromatographic results. It has a 360um OD and includes (2) F-152 fittings and (2) P-416BLK Micro-Fingertight Fittings.



Technical References
Manuals

Fittings Guide

A practical guide to connections and fittings in your laboratory

Download
Additional Information
Fits tubing:
360 um OD
Ports:
5/16-24 Coned
Material:
PEEK
Type:
Union
Unit of Measure:
EA
Includes:
(2) F-152, (2) P-416BLK
Catalog Page Number:
240
Threads:
5/16-24 Coned
Thread Port Configuration Coned:
5/16-24
Pressure Rating Max (bar):
345
Pressure Rating Max (psi):
5000
Thru Hole (in):
0.006
Swept Volume (nL):
5
For Tubing OD (um):
360
Thru Hole (mm):
0.15
