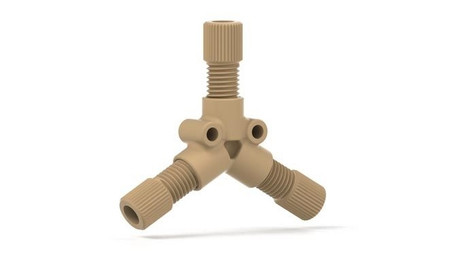

Y Assembly

P-515 - PEEK Y Assembly 5/16-24 .125in thru hole

Idex Health and Science
SKU:
P-515
$39.94
for 3/16"OD tubing, (ships w/(3)P-132 & (3)P-133)
Current Stock:
Adding to cart… The item has been added
Description

Our PEEK Y Connector Assembly can split a stream or join two streams together similar to a T design. Unlike a T the geometry of the Y design reduces turbulence and improves analytical results. It is for 3/16” tubing, and has 5/16-24 internal threading with a 0.125” thru-hole. This assembly comes with (3)OD x P-132 Flangeless Fittings.



Technical References
Manuals

Fittings Guide

A practical guide to connections and fittings in your laboratory

Download
Additional Information
Fits tubing:
3/16" OD
Material:
PEEK
Type:
Y Connector
Unit of Measure:
EA
Includes:
(3) XP-132
Catalog Page Number:
237
Threads:
5/16-24 Flat Bottom
For Tubing OD (in):
3/16
Pressure Rating Max (bar):
34
Pressure Rating Max (psi):
500
Thru Hole (in):
0.125
Swept Volume (uL):
47.7
Thread Port Configuration Flat Bottom:
1/4-28
Thru Hole (mm):
3.2
