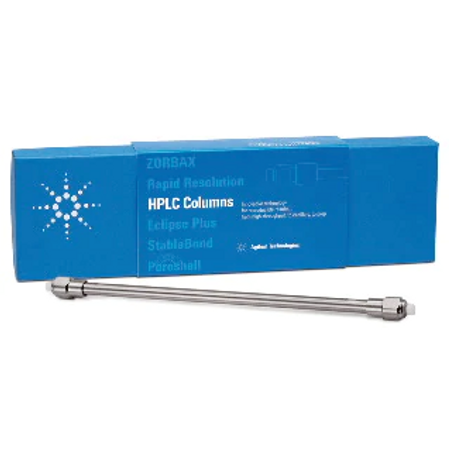

ZORBAX RR Eclipse XDB-C18, 80Å, 4.6 x 75 mm, 3.5 µm
More and more chromatographers are developing their analytical and LC/MS separations on ZORBAX Eclipse XDBHPLC columns. Why? Because ZORBAX Eclipse XDB columns solve many of their separation challenges.Â
- Excellent peak shape for basic, acidic or neutral compounds
- High performance over a wide pH range
- Rugged, reproducible chromatographyfrom column-to-column and lot-to-lot
- More selectivity options for methoddevelopmentÂ
| Brochures | |
|---|---|
Agilent HPLC ColumnsColumns for HPLC applications | Download |
InfinityLab Poroshell 123Column Selector Poster | Download |
| Blogs | |
How to Maximize HPLC Column LifetimeMaximize HPLC column lifetime to proactively avoid premature degredation. | |
Pore Size vs. Particle Size in HPLC ColumnsUnderstand the differences of HPLC column specifications | |
Optimizing HPLC Methods with Agilent's InfinityLab Poroshell 120 ColumnsMore chemistries, more separation, more consistency | |
- Column Family:
- Agilent ZORBAX Eclipse XDB
- Phase:
- Eclipse XDB-C18
- Particle Size:
- 3.5 um
- ID:
- 4.6 mm
- Length:
- 75 mm
- Unit of Measure:
- EA
- Catalog Page Number:
- 64
- Type:
- HPLC Column
- Guard Column:
- No
- Hardware:
- Conventional
- Inner Diameter (ID):
- 4.6 mm
- LC Column Brand:
- ZORBAX
- LC Platform:
- HPLC
- Pressure Rating:
- 400 bar
- Carbon Load:
- 10 %
- Endcapped:
- Double
- LC Column Maximum Temperature:
- 60 C at pH 2-6 ; 40 C at pH 6-9
- LC Column Phase:
- Eclipse XDB-C18
- Molecular Weight Lower Limit:
- 0 Da
- Molecular Weight Upper Limit:
- 3000 Da
- Particle Type:
- Fully Porous
- pH Range:
- 2-9
- Pore Size:
- 80 A
- Separation Mode:
- Reversed Phase
- USP Designation:
- L1
