462-1000A is an ASI HyperShear binary dynamic mixer assembly with a 1.0 mL mixer volume.
- Part type: binary dynamic mixer assembly
- Family / series: HyperShear dynamic mixers
- Mixer volume: 1.0 mL
- Power: 100 - 120 Vac

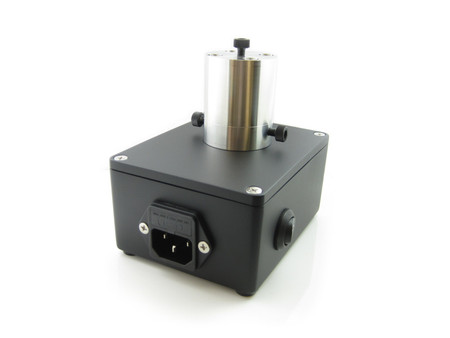

The ASI dynamic mixer uses the same principal as our static mixers, except additional energy is added to the flow stream by a magnetically coupled rotor. This results in far greater mixing for the same amount of mixer dead volume, but also results in more flush-out volume and tailing than static mixers. Dynamic mixers work best in steady state flow conditions when multiple solvents need to be mixed. TFA presents another application there the ASI dynamic mixer performs well. A photo shows 1 mL model.
Approximately up to 20 Cp viscosity can be mixed.
The upper half of the mixing chamber, which contains the rotor, can be removed and cleaned. The lower half contains the ports and can be accessed but for cleaning.
