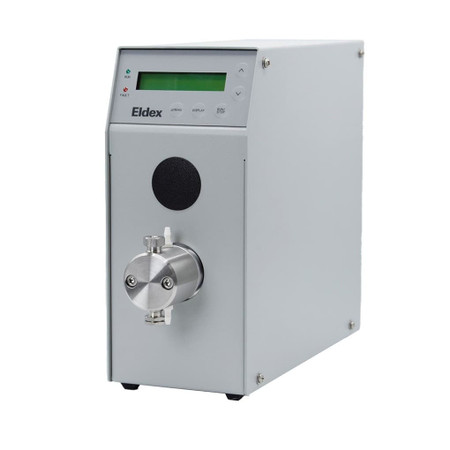

1LM - Optos Metering Pump, SS, 0.002-2.5ml/min
$3,550.00
Optos precision, high pressure metering pump model 1LM, Material of construction 316SS.
Model: 1LM
Flow Rate* (mL/min): 0.002 – 2.5
Max. Pressure (psi): 6000
Piston Diameter (in.): 3/32
Piston Stroke (in.): .125
Wetted Parts: type 316 stainless steel, sapphire, ruby, graphite fiber reinforced PTFE, CTFE.
Reproducibility: typically ±0.3%
Viscosity Limit: 500 centipoise
Tubing Connections:
- Inlet valves: 1/4″-28 low pressure plastic fitting for use with 1/8″ plastic tubing (fitting and 60cm of tubing provided with pump).
- Outlet valves: 10-32 tube nut, ferrule for use with 1/16″ tubing (tube nut and ferrule provided with pump).
- Valves with special fittings available on request.
Remote Control Options:
- Voltage: 0-5VDC
- Current Loop: 4-20 mA
- RS232
Dimensions (DxWxH): 28 x 10 x 23.5 cm (11 x 4 x 9.25 in.)
Weight: 5.3 kg (11.75 lbs.)
Electrical:
- Voltage/Frequency: 100-230VAC (±10%); 50/60Hz
- VA rating: 80
- Fuse: 0.8 A
- Unit of Measure:
- EA
