Agilent Electron Impact (EI) Ion Source

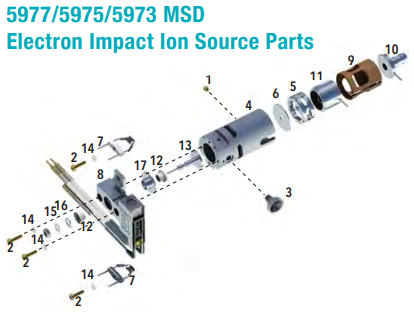

Agilent Electron Impact (EI) Ion Source diagram showing item numbers

Parts blowout diagram for Agilent EI Ion Source — item numbers correspond to the table.

Item Description SS Source Inert Source
2 Cap screw, gold plated G1999-20021 G1999-20021
3 Transfer line socket G1099-20136 G1099-20136
4 Inert ion source body G1099-20130 G2589-20043
5 Drawout cylinder G1072-20008 G1072-20008
6 Drawout plate, 3 mm 05971-20134 G2589-20100
6 Drawout plate, 6 mm G3163-20530 G2589-20045
7 Filament assembly, high temperature (EI) G7005-60061 G7005-60061
9 Lens insulator G3170-20530 G3170-20530
10 Entrance lens assembly G3170-20126 G3170-20126
11 Ion focus lens 05971-20143 05971-20143
12 Repeller insulator G1099-20133 G1099-20133
13 Repeller G1099-20132 G2589-20044



Agilent 5977/7000C Extractor Ion Source Parts

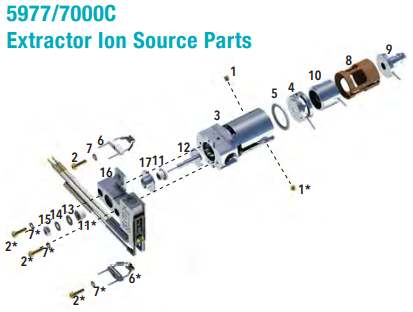

Agilent 5977/7000C Extractor Ion Source parts diagram showing item numbers

Parts blowout diagram for Agilent 5977/7000C Extractor Ion Source — item numbers correspond to the table.

Item Description Part No.
3 Extraction source body G3870-20440
4 Extractor lens G3870-20444
5 Extractor lens insulator G3870-20445
6 Filaments, 4-turn G7005-60061
8 Lens insulator G3870-20530
9 Entrance lens assembly G3170-20126
10 Ion focus lens 05971-20143
11 Repeller insulator G1099-20133
12 Inert repeller G2589-20044



5975/5973 MSD Chemical Ionization Ion Source Parts (CI)

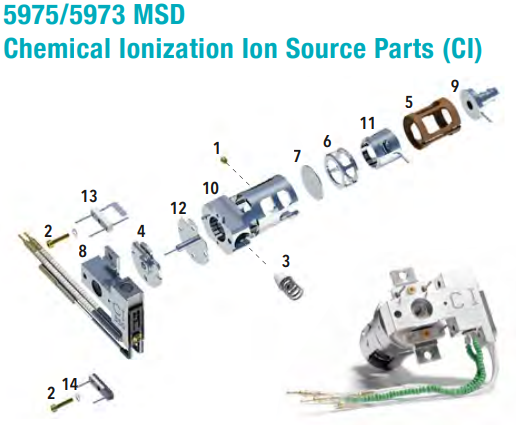

Agilent 5975/5973 MSD Chemical Ionization Ion Source parts diagram showing item numbers

Parts blowout diagram for Agilent 5975/5973 MSD Chemical Ionization Ion Source — item numbers correspond to the table.

Item Description Part No.
2 Cap screw, gold plated G1999-20021
7 Drawout plate G1999-20446
8 5977 CI 350 repeller assembly G3170-60416
9 Entrance lens G3170-20126
13 Filament assembly (CI), 2/pk G7005-60072

Agilent MSD Filaments

Description 7000 Series 5977 Series 5975 Series 5973 Series
Filament assembly, high temperature (EI), ea G7005-60061 G7005-60061 G7005-60061 G7005-60061
Filament assembly (CI), 2/pk G7005-60072 G7005-60072 G7005-60072 G7005-60072



Agilent MSD Electron Multipliers and Replacement Horn

Description 7000A Series 7000B/C Series 5973 Series 5975 Series 5977 Series
Electron multiplier replacement horn
Use with electron multipliers with “straight” horns		 — — 05971-80103 05971-80103 —
Triple Axis Detector Assy, 5975 Ceramic G3170-80105 — — G3170-80105 G3170-80105
Triple axis electron multiplier G3170-80103 G3170-80103 — G3170-80103 G3170-80103
High energy dynode — — G1099-80001 — —



Agilent Cleaning & Maintenance Supplies

Description Part No.
One Year Maintenance Kit (for diffusion pump systems). Includes Big Universal Trap for He (1/8"), abrasive sheets (5/pk), lint-free cloths (15/pk), cotton swabs (100/pk), SantoVac Ultra, 18.5 mL (2 ea), rough pump oil (1 L), filament assembly, octafluoronaphthalene (OFN) 5183-2096
Nylon gloves, lint-free, large, 1 pair 8650-0030
Nylon gloves, lint-free, small, 1 pair 8650-0029
Lint-free industrial wipes, 100% cotton, 9" x 9", 300/pk 9310-4828
Ion source cleaning kit. Includes lint-free cloths (15/pk), abrasive sheets (5/pk), cotton swabs (100/pk), lint-free nylon gloves, abrasive Alumina powder 5181-8863
Cloths, lint-free, 15/pk 05980-60051
Cotton swabs, 100/pk 5080-5400
Abrasive sheets, aluminum oxide green lapping paper, 600 mesh, 5/pk 5061-5896
Alumina powder, abrasive, 1 kg 8660-0791
PFTBA sample, certified, 10 g, 5.32 mL 8500-0656
Replacement glass bulb for PFTBA and PFTTD test sample G3170-80002
Replacement glass vial for PFTBA and PFTTD test sample 05980-20018
Activated alumina, absorbent pellets for Edwards rough pump traps, non-LC/MS, 1 lb can 8500-1233
Quiet Cover DS for vacuum pump models: Agilent DS202, DS302, DS402, DS602 G6012A
Quiet Cover GC/MS for vacuum pump models: Pfeiffer Duo2.5, Agilent DS42, Agilent DS42i, Edwards E2M1.5, 2.5, Pfeiffer Duo 2.5G or higher G6014B
