Multimode Inlet Supplies
Whether you need to increase your system sensitivity with large volume injection capabilities, analyze thermally labile compounds or inject dirty samples, the Multimode Inlet delivers the performance and flexibility you need.
Agilent Multimode Inlet Body

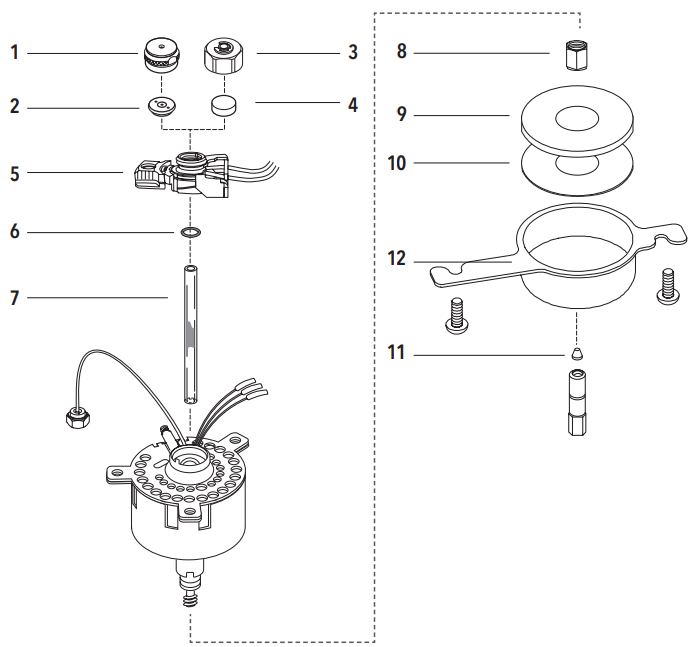

Parts blowout diagram for Agilent Multimode Inlet Body — item numbers correspond to the table.
| Item | Description | Part No. |
|---|---|---|
| 1 | Merlin cap | 5182-3445 |
| 2 | Merlin Microseal | 5182-3444 |
| 3 | Septum retainer nut | 18740-60835 |
| 4 | 11 mm Certified BTO septa 50/pk; for more septa shop here | 5183-4757 |
| 5 | Top insert assembly, standard | G3452-60730 |
| 6 | Certified non-stick fluorocarbon O-ring | 5188-5365 |
| 7 | Dimpled splitless single taper, deactivated | 5190-2296 |
| 8 | Column nut adapter | G3510-20018 |
| 9 | Foil (LN2 only) | — |
| 10 | Multimode Inlet insulation | — |
| 11 | Ferrule, shop here | — |
