Metric Threads

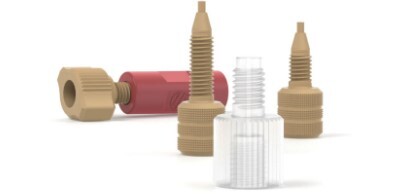

Idex Metric Threaded Adapters
Idex Metric Threaded Adapters are engineered to securely connect fittings with mismatched thread standards, enabling reliable transitions between English and Metric threaded geometries. Manufactured from stainless steel, PEEK, or Tefzelâ„¢ (ETFE), these adapters deliver excellent solvent resistance and dependable performance across a wide range of chromatography and laboratory fluidic applications.
| Part No | Threads | Threads | Thru-Hole | Swept Vol. | Pressure Rating |
|---|---|---|---|---|---|
| PEEK Adapters | |||||

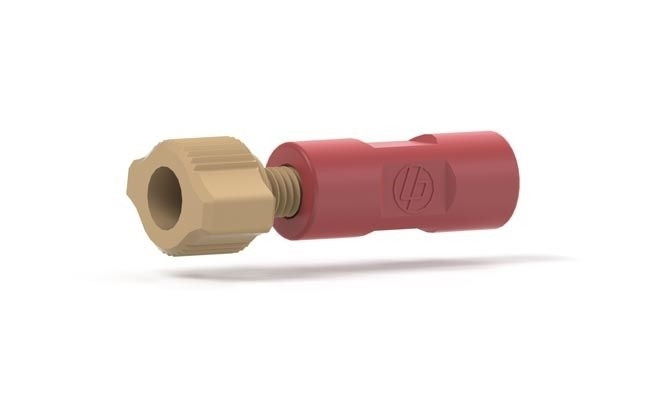

| P-626 | 10-32 Coned, Female | M6 Flat Bottom, Female | 0.020" (0.50) | 0.3 µL | 1,000 PSI (69 bar) |
| P-650 | M6 Flat Bottom, Female, Standard | 10-32 Coned, Male | 0.030" (0.75) | 6.7 µL | 1,000 PSI (69 bar) |
| P-920-01 | 10-32 Coned, Female | M6 Flat Bottom, Male | 0.040" (1.00) | 8.0 µL | 1,000 PSI (69 bar) |
| PCTFE Adapters | |||||
| P-670 | M6 Flat Bottom, Female | 1/4-28 Flat Bottom, Male | 0.030" (0.75) | 2.6 µL | 1,000 PSI (69 bar) |
| P-673 | 5/16-24 Flat Bottom, Female | M6 Flat Bottom, Male | 0.040" (1.00) | 9.9 µL | 1,000 PSI (69 bar) |
| P-694 | 1/4-28 Flat Bottom, Female | M6 Flat Bottom, Male | 0.040" (1.00) | 11.3 µL | 1,000 PSI (69 bar) |
| Stainless Steel Adapters | |||||
| 1587 | 10-32 Coned, Female | M6 Flat Bottom, Male | 0.040" (1.00) | 0.68 µL | N/A* |
* The pressure ratings of these adapters exceed the pressure-holding ability of the fittings and tubing used with them.
