MarvelXACT UHPLC Connection Systems
Idex MarvelXACT UHPLC Connection Systems
IDEX MarvelXACT UHPLC Connection Systems deliver precision, repeatability, and ease-of-use for modern ultra-high-pressure liquid chromatography workflows. Designed to eliminate the risk of under- or over-tightening, MarvelXACT fittings feature a patented torque-limiting mechanism that provides a tactile “click” once optimal torque is reached—ensuring perfect installation every time.
Built on MarvelX™ face-sealing technology, these systems seal directly at the bottom of the port, creating true zero-dead-volume connections. This minimizes carryover, peak tailing, and band broadening for maximum chromatographic performance. All MarvelXACT systems are finger-tight to 19,000 psi, support 100+ connect/disconnect cycles, and use flexible 1/32" OD tubing for easy routing through UHPLC instruments.
- Torque-limiting mechanism prevents under- or over-tightening
- Face-sealing design eliminates dead volume
- Finger-tight performance up to 19,000 psi
- 100+ connection cycles without loss of performance
- Compatible with standard 10-32 coned receiving ports
- Available in stainless steel and bioinert flow path options

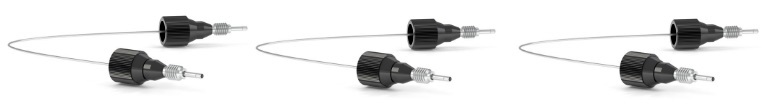

MarvelXACT Stainless Steel UHPLC Connection Systems
MarvelXACT Stainless Steel UHPLC systems provide rugged, high-pressure performance for demanding analytical applications. The patented torque-limiting fitting produces a distinct haptic “click” when optimal torque is achieved, removing guesswork from installation. MarvelX face-sealing technology ensures port-bottom sealing to eliminate internal volume and reduce carryover, peak tailing, and band broadening.
Featuring flexible 1/32" OD tubing for clean instrument routing, these systems are absolutely finger-tight and compatible with standard 10-32 coned ports. Each connection can be made and remade over 100 times without degradation.
MarvelXACT PEEK-Lined Stainless Steel UHPLC Connection Systems
MarvelXACT PEEK-lined systems combine stainless steel durability with a bioinert PEEK flow path for chemically sensitive applications. The torque-limiting mechanism provides consistent installation force, confirmed by tactile click feedback, while MarvelX sealing technology creates true zero-dead-volume connections at the port face.
These systems use flexible 1/32" OD tubing, connect to 10-32 coned ports, and support over 100 connection cycles—all without tools. Ideal for biopharmaceutical and trace-analysis workflows where chemical compatibility is critical.
MarvelXACT PEEKsil UHPLC Connection Systems
MarvelXACT PEEKsil systems offer a fully bioinert flow path using PEEKsil capillary tubing, making them ideal for high-sensitivity and biomolecule applications. The patented torque-limiting fitting ensures precise tightening with a haptic click at optimal torque, eliminating user variability.
With MarvelX face-sealing technology, flexible 1/32" OD tubing, and compatibility with 10-32 coned ports, PEEKsil systems deliver zero-dead-volume performance and consistent sealing through 100+ connection cycles—completely finger-tight.
Chrom Tech is an authorized distributor of IDEX fluidic solutions and stocks a full range of MarvelXACT UHPLC connection systems. Contact our technical team for help selecting the right configuration for your system, pressure range, and chemical compatibility requirements.
| PART NO | DESCRIPTION | LENGTH | TUBING ID | MATERIAL |
|---|---|---|---|---|
| UPFF-7100150 | MarvelXACT PEEKsil 100µm x 150mm | 150 mm | 100 µm | PEEKsil |
| UPFF-7025150 | MarvelXACT PEEKsil 25µm x 150mm | 150 mm | 25 µm | PEEKsil |
| UPFF-7050150 | MarvelXACT PEEKsil 50µm x 150mm | 150 mm | 50 µm | PEEKsil |
| UPFF-7075150 | MarvelXACT PEEKsil 75µm x 150mm | 150 mm | 75 µm | PEEKsil |
| UPFF-7100350 | MarvelXACT PEEKsil 100µm x 350mm | 350 mm | 100 µm | PEEKsil |
| UPFF-7025350 | MarvelXACT PEEKsil 25µm x 350mm | 350 mm | 25 µm | PEEKsil |
| UPFF-7050350 | MarvelXACT PEEKsil 50µm x 350mm | 350 mm | 50 µm | PEEKsil |
| UPFF-7075350 | MarvelXACT PEEKsil 75µm x 350mm | 350 mm | 75 µm | PEEKsil |
| UPFF-7100600 | MarvelXACT PEEKsil 100µm x 600mm | 600 mm | 100 µm | PEEKsil |
| UPFF-7025600 | MarvelXACT PEEKsil 25µm x 600mm | 600 mm | 25 µm | PEEKsil |
| UPFF-7050600 | MarvelXACT PEEKsil 50µm x 600mm | 600 mm | 50 µm | PEEKsil |
| UPFF-7075600 | MarvelXACT PEEKsil 75µm x 600mm | 600 mm | 75 µm | PEEKsil |
| UPFP-7100150 | MarvelXACT PLS 100µm x 150mm | 150 mm | 100 µm | PLS |
| UPFP-7025150 | MarvelXACT PLS 25µm x 150mm | 150 mm | 25 µm | PLS |
| UPFP-7050150 | MarvelXACT PLS 50µm x 150mm | 150 mm | 50 µm | PLS |
| UPFP-7075150 | MarvelXACT PLS 75µm x 150mm | 150 mm | 75 µm | PLS |
| UPFP-7100250 | MarvelXACT PLS 100µm x 250mm | 250 mm | 100 µm | PLS |
| UPFP-7025250 | MarvelXACT PLS 25µm x 250mm | 250 mm | 25 µm | PLS |
| UPFP-7050250 | MarvelXACT PLS 50µm x 250mm | 250 mm | 50 µm | PLS |
| UPFP-7075250 | MarvelXACT PLS 75µm x 250mm | 250 mm | 75 µm | PLS |
| UPFP-7100350 | MarvelXACT PLS 100µm x 350mm | 350 mm | 100 µm | PLS |
| UPFP-7025350 | MarvelXACT PLS 25µm x 350mm | 350 mm | 25 µm | PLS |
| UPFP-7050350 | MarvelXACT PLS 50µm x 350mm | 350 mm | 50 µm | PLS |
| UPFP-7075350 | MarvelXACT PLS 75µm x 350mm | 350 mm | 75 µm | PLS |
| UPFP-7100500 | MarvelXACT PLS 100µm x 500mm | 500 mm | 100 µm | PLS |
| UPFP-7025500 | MarvelXACT PLS 25µm x 500mm | 500 mm | 25 µm | PLS |
| UPFP-7050500 | MarvelXACT PLS 50µm x 500mm | 500 mm | 50 µm | PLS |
| UPFP-7075500 | MarvelXACT PLS 75µm x 500mm | 500 mm | 75 µm | PLS |
| UPFP-7100600 | MarvelXACT PLS 100µm x 600mm | 600 mm | 100 µm | PLS |
| UPFP-7025600 | MarvelXACT PLS 25µm x 600mm | 600 mm | 25 µm | PLS |
| UPFP-7050600 | MarvelXACT PLS 50µm x 600mm | 600 mm | 50 µm | PLS |
| UPFP-7075600 | MarvelXACT PLS 75µm x 600mm | 600 mm | 75 µm | PLS |
| UPFS-7100150 | MarvelXACT SS 100µm x 150mm | 150 mm | 100 µm | SS |
| UPFS-7125150 | MarvelXACT SS 125µm x 150mm | 150 mm | 125 µm | SS |
| UPFS-7254150 | MarvelXACT SS 254µm x 150mm | 150 mm | 254 µm | SS |
| UPFS-7100250 | MarvelXACT SS 100µm x 250mm | 250 mm | 100 µm | SS |
| UPFS-7125250 | MarvelXACT SS 125µm x 250mm | 250 mm | 125 µm | SS |
| UPFS-7254250 | MarvelXACT SS 254µm x 250mm | 250 mm | 254 µm | SS |
| UPFS-7100350 | MarvelXACT SS 100µm x 350mm | 350 mm | 100 µm | SS |
| UPFS-7125350 | MarvelXACT SS 125µm x 350mm | 350 mm | 125 µm | SS |
| UPFS-7254350 | MarvelXACT SS 254µm x 350mm | 350 mm | 254 µm | SS |
| UPFS-7100500 | MarvelXACT SS 100µm x 500mm | 500 mm | 100 µm | SS |
| UPFS-7125500 | MarvelXACT SS 125µm x 500mm | 500 mm | 125 µm | SS |
| UPFS-7254500 | MarvelXACT SS 254µm x 500mm | 500 mm | 254 µm | SS |
| UPFS-7100600 | MarvelXACT SS 100µm x 600mm | 600 mm | 100 µm | SS |
| UPFS-7125600 | MarvelXACT SS 125µm x 600mm | 600 mm | 125 µm | SS |
| UPFS-7254600 | MarvelXACT SS 254µm x 600mm | 600 mm | 254 µm | SS |
