Maximizing Efficiency with the Agilent ADM Flow Meter
The Agilent ADM Flow Meter is designed to improve laboratory efficiency by providing accurate, real-time dry gas flow measurement for gas chromatography. With a replaceable NIST-calibrated cartridge, hands-free operation, and a built-in calibration timer, it offers a modern alternative to traditional bubble flow meters.
Why Accurate Gas Flow Measurement Matters in GC
In gas chromatography, even small changes in gas flow can affect peak shape, resolution, detector balance, and retention time consistency. Measuring flow accurately is an important part of maintaining reproducibility and confirming that the GC is operating as expected.
The Agilent ADM Flow Meter is intended to provide accurate volumetric gas flow readings without requiring knowledge of the gas composition. This helps laboratories check gas delivery more efficiently and support more reliable GC performance across routine and troubleshooting workflows.
How the Agilent ADM Flow Meter Works
Unlike traditional bubble flow meters, which rely on liquids and glass tubes, the ADM Flow Meter measures dry gas flow without those components. The system uses a solenoid valve to momentarily interrupt the gas stream, moving a diaphragm in proportion to the flow rate. That movement is then converted into a digital value and displayed in real time.
This measurement approach provides repeatable digital flow readings while avoiding the mess, contamination risk, and fragility associated with liquid-based flow meters.
Key Features and Benefits
The ADM Flow Meter is designed to simplify routine GC gas flow checks while reducing maintenance complexity.
- Replaceable NIST-Calibrated Cartridge – the calibration cartridge can be replaced annually without sending the full instrument out for service.

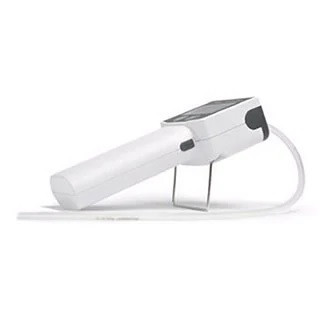

- Hands-Free Operation – an integrated kickstand supports convenient bench-top use.
- Built-In Calibration Timer – helps indicate when cartridge replacement is due.
- Universal Adapters – support measurement of detector and split vent line flows.
Advantages Over Traditional Bubble Flow Meters
Bubble flow meters have been used in GC laboratories for many years, but the ADM Flow Meter offers several practical advantages for modern flow verification.
- No liquids or glass parts – reduces contamination and breakage risk.
- Continuous real-time monitoring – provides immediate digital flow readings.
- Lower maintenance burden – cartridge replacement is quick and helps reduce downtime.
For many laboratories, this makes gas flow checks cleaner, faster, and easier to repeat consistently.
Using Flow Measurement to Troubleshoot GC Problems
When a GC system shows erratic performance or unexplained variation, accurate flow measurement can help isolate the problem. The ADM Flow Meter can serve as a diagnostic reference when checking whether gas delivery is stable and whether each gas path is operating within expected conditions.
Examples of problems it can help evaluate include:
- Inconsistent flow rates – verify and stabilize gas delivery.
- Detector flow imbalance – confirm and adjust detector-related gas flow.
- Split vent or septum purge flow problems – use adapters to check whether flow is correct and help prevent sample loss or ghost peaks.
The Importance of the Replaceable Cartridge
One of the defining features of the ADM Flow Meter is its replaceable calibration cartridge. This design allows the user to maintain measurement accuracy without sending the entire unit back for factory recalibration.
- Easy replacement – users can replace the cartridge in-house.
- Guaranteed accuracy – each cartridge is NIST-traceable and valid for one year from activation.
- Lower long-term cost – only the cartridge needs replacement rather than the entire meter being sent out for service.
Maintenance Tips for Long-Term Accuracy
To support reliable long-term performance, monitor the calibration timer and replace the cartridge when prompted. Store spare cartridges in a clean, dry environment. According to the current content, calibration remains valid for three years before first use. The flow meter body and connectors should also be inspected regularly for wear or damage.
Simple preventative checks can help avoid larger problems and keep flow measurement dependable over time.
A Smarter Way to Measure GC Gas Flow
The Agilent ADM Flow Meter provides a practical way to measure gas flow in GC systems with precision, durability, and less maintenance burden than traditional bubble meters. Its digital readout, replaceable calibrated cartridge, and support for detector and vent-line measurements make it a useful tool for both routine checks and GC troubleshooting.
For help choosing flow measurement tools, accessories, or replacement cartridges, contact the Chrom Tech support team.
