Capillary Column Ferrules and Nuts

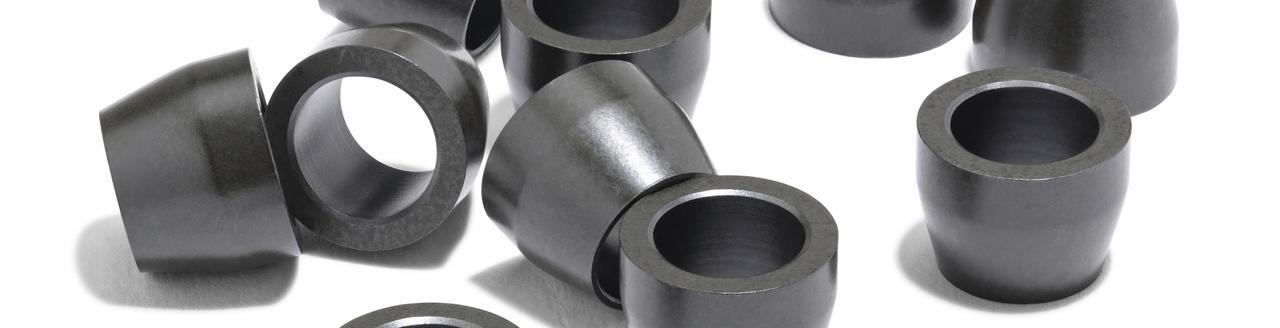

Agilent Capillary Column Ferrules

Agilent capillary column ferrules provide secure, leak-free sealing across a wide range of GC applications. Engineered for compatibility with DB, HP, CP, VF, and Agilent Select columns, these ferrules maintain reliable connections even during demanding temperature cycling.

Available in graphite, Vespel, 85% Vespel / 15% graphite, and Ultimetal Plus flexible metal compositions, Agilent ferrules are optimized to reduce leaks, protect column integrity, and ensure consistent chromatographic performance.

Unless otherwise noted, each package contains 10 ferrules.

For Use with DB and HP Columns

Column ID (mm) Fits Agilent Brand Column Series Ferrule Nominal ID Short Ferrule Graphite Short Ferrule Vespel Short Ferrule 85% Vespel / 15% Graphite Pre-Conditioned Long Ferrule 85% Vespel / 15% Graphite Ultimetal Plus Flexible Metal Ferrule
0.1 – 0.25 DB, HP 0.4 500-2114 5181-3322 5181-3323 5062-3508 G3188-27501
0.32 DB, HP 0.5 5080-8853 5062-3513 5062-3514 5062-3506 G3188-27502
0.45 – 0.53 DB, HP 0.8 500-2118 5062-3511 5062-3512 5062-3538 G3188-27503
No hole — — — — 5190-4054 5181-3308 —

For Use with CP, VF, and Select Columns

Designed for CP, VF, and Select columns, these ferrules provide precise, high-temperature sealing for dependable GC connections and consistent column performance.

Column ID (mm) Fits Agilent Brand Column Series Ferrule Nominal ID Short Ferrule Graphite Short Ferrule Vespel Short Ferrule 85% Vespel / 15% Graphite Pre-Conditioned Long Ferrule 85% Vespel / 15% Graphite Ultimetal Plus Flexible Metal Ferrule
0.025 – 0.05 CP, VF, Select 0.4 500-2114 5062-3515 5062-3516 5062-3507 —
0.075 CP, VF, Select 0.4 500-2114 5062-3515 5062-3516 5062-3507 —
0.1 – 0.25 CP, VF, Select 0.5 5080-8853 5062-3513 5062-3514 5062-3506 —
0.32 CP, VF, Select 0.5 5080-8853 5062-3513 5062-3514 5062-3506 —
0.53 CP, VF, Select 0.8 500-2118 5062-3511 5062-3512 5062-3538 —
No hole — — — — 5190-4054 5181-3308 —

Agilent Column Nuts

Description Part No
Short Nuts
Universal column nut, 1/16" hex, 2/pk 5181-8830
Blanking plug, finger tight style 5020-8294
6850 column nut, 2/pk 5183-4732
High Temperature SimDis PTV inlet, 4 mm hex 5188-5312
Long Nuts
MS interface column nut, female (requires long ferrule) 05988-20066
Column nut for long or two-hole ferrules 05921-21170
Accessories
Open end wrench, 1/4" and 5/16" 8710-0510
Self-Tightening Column Nuts (Uses Short Ferrule)
Self-Tightening Column nut, Inlet/Detector G3440-81011
Self-Tightening Column nut, MSD G3440-81013

Agilent column nuts ensure a secure, leak-free seal for capillary columns across GC inlets, detectors, and MSD systems—providing durability, thermal stability, and consistent performance.

Key Definitions â–¸
Ferrule
A high-temperature compression seal used to secure a GC capillary column inside the inlet, detector, or coupling. Ferrules ensure leak-free connections and stable flow paths during analysis.
Graphite Ferrule
A soft, conformable ferrule ideal for high-temperature GC applications. Provides excellent sealing without sticking to fused-silica columns, making removal and column trimming easier.
Vespel Ferrule
A thermally stable polyimide ferrule that maintains dimensional integrity at elevated temperatures and delivers long-life sealing for GC/MS and vacuum applications.
85% Vespel / 15% Graphite
A hybrid ferrule combining durability with improved sealing conformity. Suitable for GC/MS interfaces, high-vacuum environments, and repeated thermal cycling.
Ultimetal Plus Flexible Metal Ferrule
A flexible metal ferrule with Agilent’s inertness treatment, designed to prevent sticking, reduce analyte adsorption, and ensure robust connections in reusable hardware assemblies.
Leak-Free Flow Path
A stable, sealed interface that maintains carrier-gas purity and prevents oxygen or moisture intrusion—critical for protecting GC columns and maintaining consistent retention times.
Frequently Asked Questions â–¸
Which ferrule material should I use for my GC column?
Graphite ferrules are ideal for high-temperature applications and easy removal, while Vespel and Vespel/graphite blends offer higher durability and better performance in GC/MS or vacuum systems. Ultimetal Plus flexible metal ferrules provide maximum inertness and reusability.
Do ferrules need to be replaced regularly?
Yes. Ferrules deform during installation and thermal cycling, so they should be replaced whenever columns are trimmed, reinstalled, or when leaks are detected to ensure a stable, inert flow path.
Are ferrules interchangeable between different Agilent inlet and detector types?
No. Ferrule dimensions and hole sizes must match your inlet or detector fitting. Chrom Tech lists each ferrule’s compatibility to help you select the correct part for your specific GC configuration.
