Measuring Gas Flow for Gas Chromatography

Maximizing Efficiency with the Agilent ADM Flow Meter
Discover how the Agilent ADM Flow Meter enhances lab efficiency by providing accurate, real-time measurements of dry gas flows for gas chromatography. Learn about its innovative features such as the replaceable cartridge, hands-free operation, and built-in calibration timer. Explore the benefits of using a digital flow meter over traditional bubble flow meters and understand how to maintain and troubleshoot your lab's gas chromatography instrumentation.

The Importance of Accurate Gas Flow Measurement in Laboratories
In the realm of gas chromatography, precision is paramount. Accurate gas flow measurement is crucial for ensuring the reliability and reproducibility of analytical results. Any deviation in flow rates can lead to significant errors, impacting the overall quality of your data. This is where the Agilent ADM Flow Meter steps in, offering a robust solution for measuring volumetric gas flow without the need to know the gas composition.

How the Agilent ADM Flow Meter Works
The Agilent ADM Flow Meter employs a sophisticated mechanism to provide continuous, real-time measurements of dry gas flows. Unlike traditional bubble flow meters that rely on liquids and glass parts, the ADM Flow Meter operates without these components, significantly reducing the risk of contamination and breakage.

When activated, a solenoid-actuated valve momentarily interrupts the gas flow. This interruption causes a diaphragm to move in proportion to the flow rate. The device then transforms this mechanical movement into a digital value, which is displayed on the screen. This seamless process ensures that you receive accurate and reliable flow measurements every time.

Key Features of the Agilent ADM Flow Meter
The Agilent ADM Flow Meter boasts several innovative features designed to enhance laboratory efficiency:

Replaceable NIST Calibrated Cartridge: The flow meter features a removable and replaceable cartridge, eliminating the need to ship the entire meter back to the factory for annual calibration. The cartridge calibration is valid for one year from its first use and can be easily replaced by the user.

Hands-Free Operation: The built-in kickstand allows for hands-free operation and easy viewing of the large display screen, making it convenient to use on your lab bench.

Built-In Calibration Timer: A built-in calibration timer guarantees accuracy by automatically warning you when the calibration cartridge needs to be replaced.

Adapters for Various Applications: Flow meter adapters enable you to easily check the gas flow from your Agilent detector or split vent line.

Advantages Over Traditional Bubble Flow Meters
Traditional bubble flow meters have been a staple in laboratories for years. However, they come with several limitations, such as the need for liquids and glass components, which can be fragile and prone to contamination. The Agilent ADM Flow Meter addresses these issues by offering a more durable and user-friendly alternative.

No Liquids or Glass Parts: The ADM Flow Meter operates without liquids, bubbles, or glass parts, reducing the risk of contamination and breakage.

Continuous Real-Time Measurements: The device provides continuous real-time measurements, ensuring that you always have accurate data at your fingertips.

Ease of Maintenance: The replaceable cartridge system simplifies maintenance, allowing you to keep your flow meter in top condition without the need for factory servicing.

Maintaining Your Agilent ADM Flow Meter: Tips and Best Practices
Proper maintenance is key to ensuring the longevity and accuracy of your Agilent ADM Flow Meter. Here are some tips and best practices to keep your device in optimal condition:

Regularly Check the Calibration Timer: Pay attention to the built-in calibration timer, which notifies you when the cartridge needs to be replaced. Timely replacement ensures that your flow meter remains accurate.

Store Cartridges Properly: Under normal storage conditions, the calibration of the cartridge is maintained for up to three years before its first use. Ensure that cartridges are stored in a clean and dry environment to preserve their calibration.

Inspect for Wear and Tear: Regularly inspect the flow meter and its components for any signs of wear and tear. Addressing minor issues promptly can prevent more significant problems down the line.

Troubleshooting Common Issues with Gas Chromatography
Even with the best equipment, issues can arise in the lab. Here are some common problems associated with gas chromatography and how the Agilent ADM Flow Meter can help troubleshoot them:

Inconsistent Flow Rates: Inconsistent flow rates can lead to erratic results. The ADM Flow Meter provides a secondary source for validating flow rates, helping you identify and correct any discrepancies.

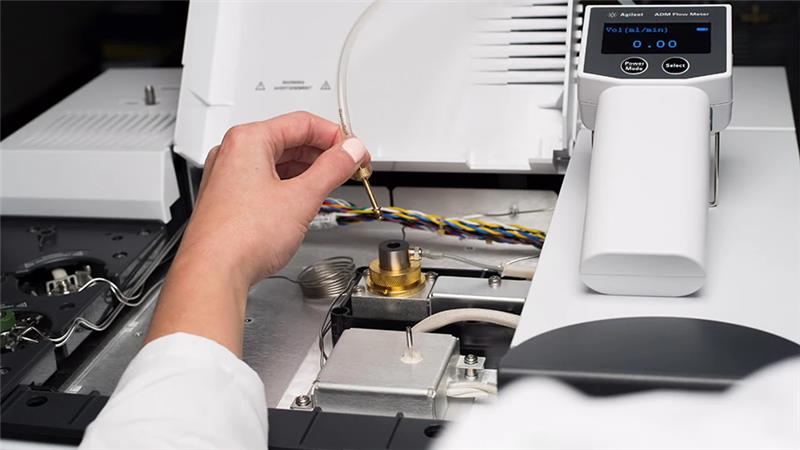

Detector Flow Issues: Problems with detector flow can compromise your analysis. Use the flow meter to measure and validate detector flows, ensuring that your equipment is functioning correctly.

Split Vent and Septum Purge Flows: Measuring split vent and septum purge flows can be challenging. The flow meter's adapters make it easy to check these flows, ensuring that your gas chromatography system operates efficiently.

The Role of the Replaceable Cartridge in Ensuring Accuracy
One of the standout features of the Agilent ADM Flow Meter is its replaceable cartridge. This innovative design element plays a crucial role in maintaining the accuracy of your flow measurements.

Ease of Replacement: The cartridge can be easily replaced by the user, eliminating the need to ship the entire meter back to the factory for calibration.

Calibration Validity: Each cartridge's calibration is valid for one year from its first use. This ensures that your flow meter remains accurate and reliable.

Cost-Effective: By allowing you to replace only the cartridge, the overall cost of maintaining the flow meter is reduced, making it a cost-effective option for laboratories.



Conclusion
The Agilent ADM Flow Meter is a game-changer for laboratories that rely on gas chromatography. Its advanced features, ease of maintenance, and accurate real-time measurements make it an invaluable tool for ensuring the reliability and reproducibility of your analytical results. By incorporating the ADM Flow Meter into your lab, you can maximize efficiency, reduce downtime, and achieve consistent, high-quality data.



For more information contact our customer support team. We are here to help you achieve excellence in your laboratory operations.
