Agilent InfinityLab UHPLC Fittings

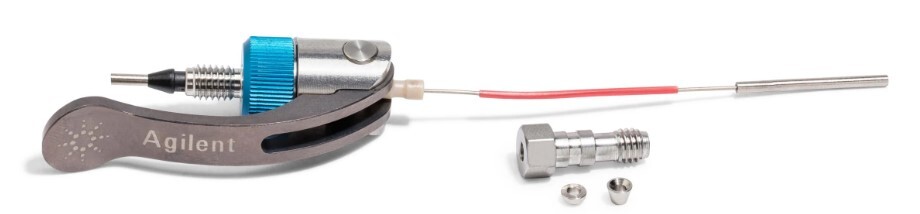

Quick connect fitting

Agilent InfinityLab Quick Turn and Quick Connect UHPLC fittings deliver fast, reliable, zero-dead-volume connections for high-pressure liquid chromatography systems. Engineered for ease of use and consistent performance, these fittings simplify capillary connections while maintaining exceptional sealing integrity—even under demanding UHPLC conditions.

  • Quick Connect UHPLC fittings provide true finger-tight connections up to 1300 bar, enabling rapid setup without tools.
  • Quick Turn UHPLC fittings are ideal for hard-to-reach ports, offering finger-tight operation up to 400 bar and wrench-assisted sealing up to 1300 bar.

Both fitting families feature Agilent’s proprietary spring-loaded design to ensure zero dead volume, secure sealing, and repeatable performance across multiple reconnects. Designed for reuse with different capillaries, InfinityLab fittings help reduce downtime, minimize leaks, and support consistent chromatographic results.

Chrom Tech offers a broad selection of Agilent InfinityLab Quick Turn and Quick Connect fittings, with many of the most common configurations in stock and ready to ship—making it easy to streamline your UHPLC workflow with confidence.

Agilent Quick Turn Fittings

PART NO DESCRIPTION
Fittings and Ferrules
5067-5966Quick Turn UHPLC fitting
5043-0924Front ferrule
Capillary Tubing Required for Use with Quick Turn Fitting
5500-1198Stainless steel, 0.075 ID x 105 mm long socket
5500-1232Stainless steel, 0.075 ID x 150 mm long socket
5500-1188Stainless steel, 0.12 ID x 105 mm long socket
5500-1189Stainless steel, 0.12 ID x 150 mm long socket
5500-1233Stainless steel, 0.12 ID x 180 mm long socket
5500-1190Stainless steel, 0.12 ID x 200 mm long socket
5500-1191Stainless steel, 0.12 ID x 280 mm long socket
5500-1192Stainless steel, 0.12 ID x 500 mm long socket
5500-1193Stainless steel, 0.17 ID x 105 mm long socket
5500-1194Stainless steel, 0.17 ID x 150 mm long socket
5500-1234Stainless steel, 0.17 ID x 180 mm long socket
5500-1195Stainless steel, 0.17 ID x 200 mm long socket
5500-1196Stainless steel, 0.17 ID x 280 mm long socket
5500-1235Stainless steel, 0.17 ID x 380 mm long socket
5500-1236Stainless steel, 0.17 ID x 400 mm long socket
5500-1197Stainless steel, 0.17 ID x 500 mm long socket
5500-1237Stainless steel, 0.17 ID x 500 mm long socket

Agilent Quick Connect Fittings

Complete Assembly Capillary Tubing ID x Length Recommended For Replacement Tubing
5067-59610.075 ID x 105 mmHeat exchanger to column5500-1174
5067-61630.075 ID x 150 mm 5500-1175
5067-61640.075 ID x 220 mm 5500-1176
5067-61650.075 ID x 280 mm 5500-1177
5067-59570.12 ID x 105 mmHeat exchanger to column5500-1173
5067-59580.12 ID x 150 mmHeat exchanger to column5500-1172
5067-59590.12 ID x 220 mmColumn to detector5500-1171
5067-59600.12 ID x 280 mmColumn to detector5500-1170
5067-61660.17 ID x 105 mm 5500-1181
5067-61670.17 ID x 150 mm 5500-1182
5067-61680.17 ID x 220 mm 5500-1183
5067-61690.17 ID x 280 mm 5500-1230
Replacement Fittings
5043-0924Front ferrule
5067-5965Stand-alone Quick Connect fitting (pair with the appropriate capillary for your system setup)
5062-2418Swagelok stainless steel fitting, 10/pk
Key Definitions â–¸
Quick Connect UHPLC Fittings
Tool-free UHPLC fittings designed for finger-tight connections up to 1300 bar, enabling rapid setup while maintaining zero-dead-volume sealing performance.
Quick Turn UHPLC Fittings
Compact UHPLC fittings engineered for tight or hard-to-access instrument ports, providing finger-tight operation up to 400 bar and wrench-assisted sealing up to 1300 bar.
Spring-Loaded Design
Agilent’s proprietary internal mechanism that automatically compensates for minor variations in capillary length, ensuring consistent zero-dead-volume connections across repeated installations.
Zero Dead Volume
A connection geometry that minimizes void space between capillary and fitting, reducing peak broadening, carryover, and signal loss in UHPLC workflows.
UHPLC (Ultra-High Performance Liquid Chromatography)
A high-pressure liquid chromatography technique operating at elevated pressures to achieve faster separations, improved resolution, and enhanced analytical sensitivity compared to traditional HPLC.
Frequently Asked Questions â–¸
What is the difference between Quick Connect and Quick Turn fittings?
Quick Connect fittings provide true finger-tight installation up to 1300 bar for fast, tool-free connections. Quick Turn fittings are designed for tight instrument spaces, offering finger-tight sealing up to 400 bar and wrench-assisted operation up to 1300 bar when higher pressure is required.
Do these fittings provide zero dead volume connections?
Yes. Both InfinityLab Quick Turn and Quick Connect fittings use Agilent’s spring-loaded design to maintain zero dead volume, helping preserve peak shape, reduce carryover, and improve chromatographic reproducibility.
Can InfinityLab fittings be reused with different capillaries?
Yes. These fittings are designed for repeated use with multiple capillaries without loss of performance, making them ideal for method development and routine system maintenance.
Are tools required to install InfinityLab Quick Connect fittings?
No tools are needed for Quick Connect fittings—they are finger-tight up to 1300 bar. Quick Turn fittings can be installed finger-tight up to 400 bar, with a wrench used only when higher pressure sealing is required.
Which applications benefit most from InfinityLab UHPLC fittings?
These fittings are well suited for UHPLC workflows in pharmaceutical, environmental, food safety, and life science laboratories where high-pressure reliability, minimal dead volume, and fast connection times are critical.
